Description

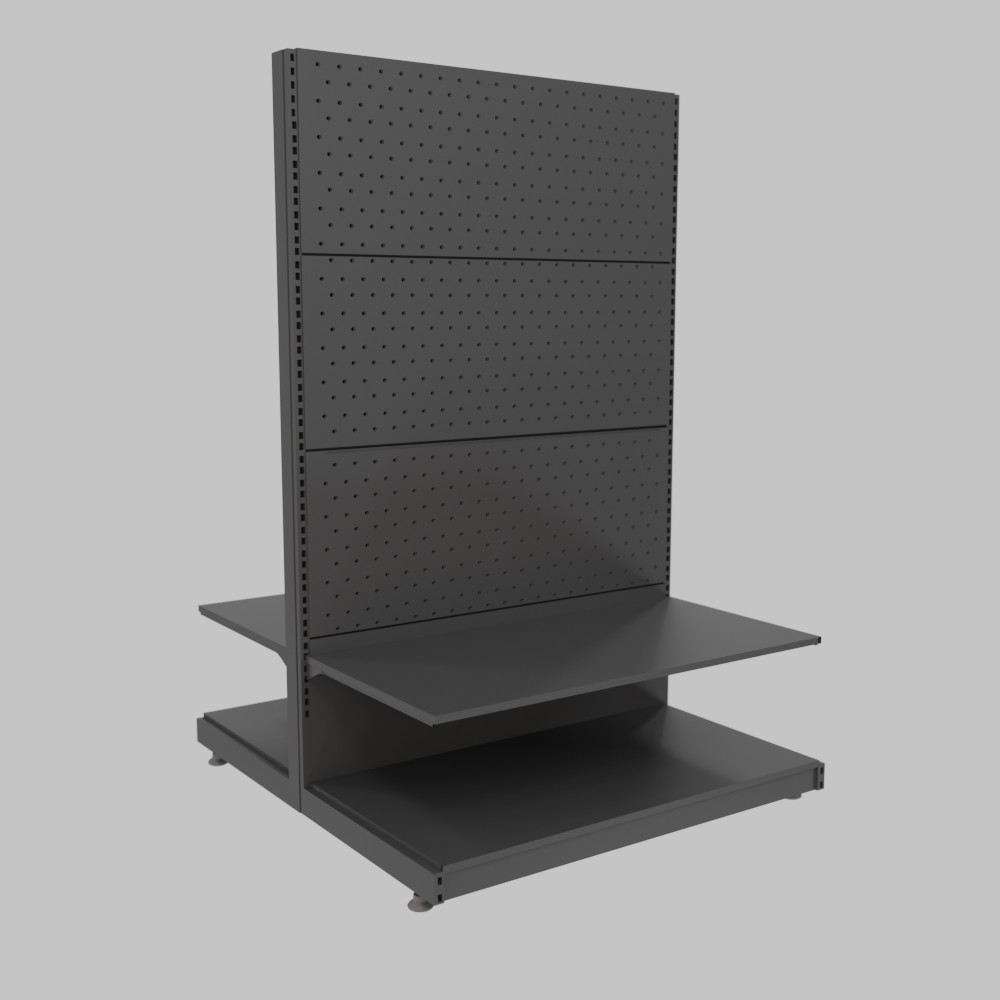

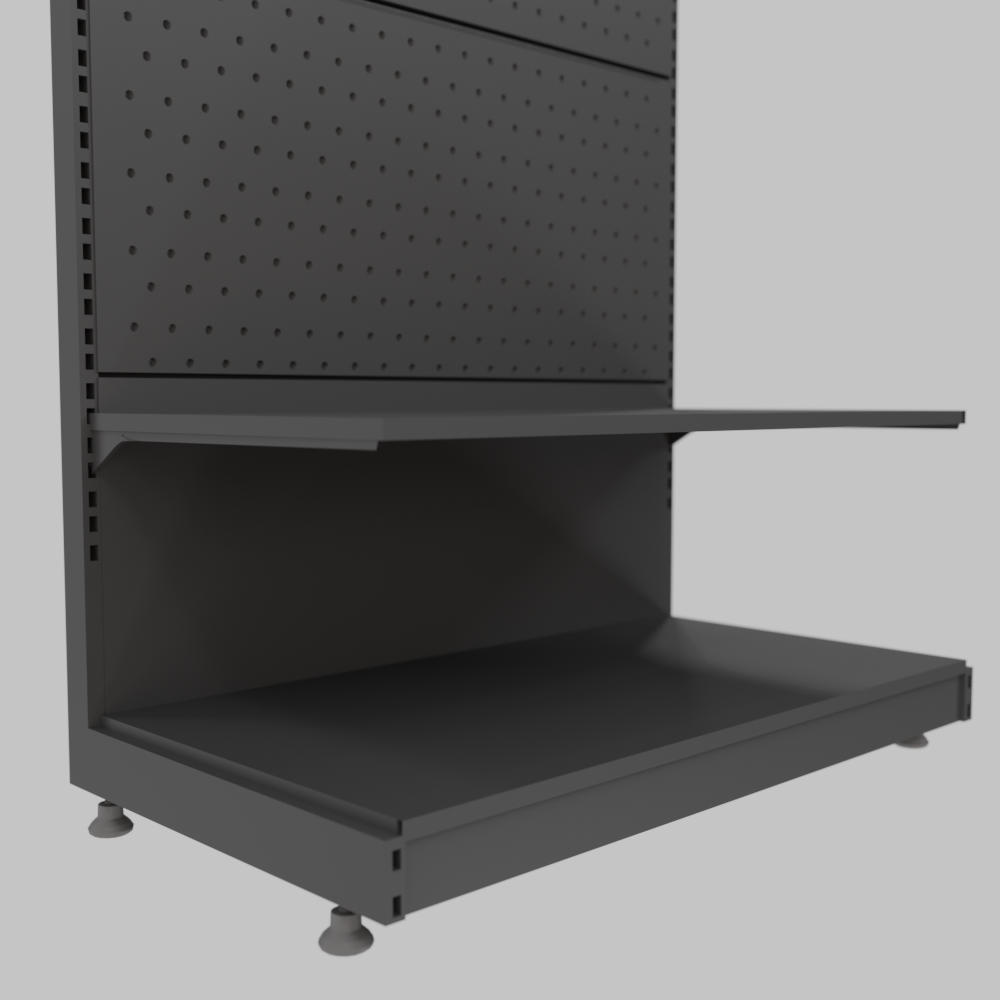

Full Description of a Double-Sided Perforated Shelving Unit with One Shelf
General Overview:
A double-sided perforated shelving unit with one shelf is specialized retail equipment designed to maximize sales floor usage and display goods on hooks. The unique double-sided design provides access from both sides, doubling space efficiency and creating convenient conditions for customers and staff.
Design Features
Frame and Base:
-
Central reinforced support post
-
Double-sided frame with perforated panels
-
Frame material: cold-rolled steel, 2.0–2.5 mm thick
-
Main post profile: 60×60 mm or 80×80 mm
-
Horizontal reinforcements for rigidity
-
Adjustable feet with a wide base for stability
Perforated Panels:
-
Metal thickness: 1.2–1.5 mm
-
Hole diameter: 4–6 mm
-
Perforation pitch: 25×25 mm or 12.5×25 mm
-
Round holes in a staggered pattern
-
Electrostatic powder coating
-
Additional perimeter stiffening ribs
Shelf:
-
Position: upper part of the structure
-
Material: metal mesh, solid metal, or chipboard
-
Thickness: 0.8–1.0 mm (metal) or 18–25 mm (chipboard)
-
Load capacity: up to 50 kg, evenly distributed
-
Height adjustment: yes, 25 mm increments
-
Safety edges to prevent items from falling
Technical Specifications
Overall Dimensions:
-
Height: 1200 / 1400 / 1600 / 1800 / 2000 mm
-
Width: 600 / 800 / 1000 / 1200 mm
-
Depth: 300 / 400 / 500 / 600 mm per side
-
Total depth: 600 / 800 / 900 / 1000 mm
-
Shelf height from floor: 1400–1800 mm
Load Capacity:
-
Shelf load: up to 50 kg
-
Perforated panels: up to 80 kg/m²
-
Single hook load: 5–10 kg
-
Total unit load: up to 200 kg
-
Number of hooks: up to 100–150 (depending on size)
Hook Mounting System
-
Insert-type hooks for perforated holes
-
Hook rod diameter: 4–6 mm
-
Hook lengths: 50 / 75 / 100 / 120 / 150 mm
-
Hook material: chrome-plated steel or polymer-coated
-
Inclination angles: 0°, 15°, 30°, 45°
Specialized Hook Types:
-
Single hooks for lightweight items
-
Double hooks for heavier goods
-
Ball-end hooks
-
Clip hooks for packaged products
-
Brackets for shelves and baskets
Applications
Tool Stores: hand tools, power tools, fasteners, abrasives
Auto Parts Stores: accessories, car chemicals, packaged parts
Household Goods Stores: kitchen utensils, home tools, garden items
Electronics Stores: cables, chargers, headphones, phone accessories
Sports Stores: accessories, protective gear, small equipment
Advantages of Double-Sided Design
Retail Benefits:
-
Doubles display area without increasing floor space
-
Simultaneous customer access from both sides
-
Ideal for central island layouts
-
Improved customer flow
-
Increased product assortment on display
Functional Benefits:
-
Fast restocking from both sides
-
Easy inventory control
-
Thematic product separation by side
-
Efficient use of vertical space
-
Easy relocation and reconfiguration
Visual Benefits:
-
Dynamic retail environment
-
Improved product visibility
-
Professional store appearance
Merchandising Guidelines
-
Heavy items on lower levels (up to 120 cm)
-
Bestsellers at eye level (120–160 cm)
-
Lightweight items higher up (160–180 cm)
-
Top shelf for samples or promotional materials
Standard комплектation
-
Central support post
-
2 double-sided perforated panels
-
Horizontal connecting profiles
-
Top shelf with brackets
-
4 adjustable feet
-
Basic hook set (20–30 pcs)
-
Fasteners and hardware
Optional Accessories: extended hook sets, baskets, dividers, label holders, promo frames, LED lighting, mirrors.
Installation
-
Experienced installer: 60–90 minutes
-
User with instructions: 2–3 hours
-
Installation team: 45–60 minutes
Maintenance & Safety
-
Regular load and hook checks
-
Cleaning of perforated panels
-
Periodic tightening of connections
-
Compliance with maximum load limits
Economic Efficiency
-
Sales area increase: 1.8–2×
-
Turnover growth: 25–35%
-
Product search time reduction: 30–40%
Payback Period:
-
Small stores: 8–12 months
-
Medium stores: 6–9 months
-
Large stores: 4–6 months
Warranty & Service:
-
Structure: 3 years
-
Perforated panels: 2 years
-
Hooks and accessories: 1 year
-
After-sales service: up to 10 years
A double-sided perforated shelving unit with one shelf is an optimal solution for retailers seeking to maximize floor efficiency and create a convenient, high-impact product display system.
