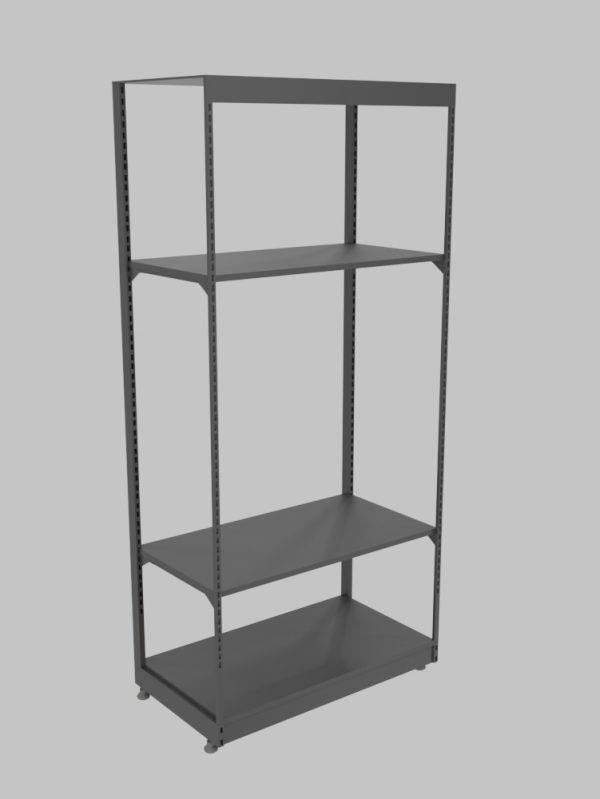

Backless shelving unit with 3 shelves

Backless Shelving Unit with 3 Shelves – A Compact Retail Solution

General Overview

The three-shelf open-frame shelving unit is an ideal solution for small and medium-sized businesses that require compact and efficient retail equipment. Thanks to the reduced number of shelves, this unit is lighter in weight, easier to transport and install, while still retaining all the advantages of two-sided access.

Design Features

Optimized Construction

The shelving unit consists of two vertical uprights and three horizontal shelves, forming a balanced and stable structure. The reduced number of components makes it approximately 25% lighter than the four-shelf version, significantly simplifying transportation and installation.

Materials and Finish

• Frame: cold-rolled steel, 1.5 mm thick

• Shelves: steel sheet, 1.2 mm thick, with reinforced edges

• Coating: powder coating with high wear resistance

• Load capacity per shelf: up to 120 kg

• Total load capacity: up to 360 kg

Adjustable System

Perforation of the uprights with a 32 mm pitch allows shelves to be installed at any height. This is especially important for a three-shelf design, where correct space distribution between shelves critically affects overall functionality.

Technical Specifications

Standard Dimensions

• Height: 1300–1800 mm (compact models)

• Width: 900–1000 mm

• Depth: 300–500 mm

• Distance between shelves: 400–600 mm (adjustable)

• Unit weight: 18–25 kg

Shelf Configuration Options

• Bottom shelf: 200–300 mm from the floor

• Middle shelf: 600–800 mm from the floor

• Top shelf: 1000–1200 mm from the floor

• Option for asymmetric shelf positioning

Advantages of the Compact Design

Easy Installation

The reduced number of components allows the shelving unit to be assembled in 15–20 minutes without special tools. The package includes clear illustrated instructions and all necessary fasteners.

Mobility

The lightweight design makes the shelving unit easy to move even when fully assembled. This is particularly convenient for temporary retail locations, exhibitions, or frequent layout changes.

Cost Efficiency

Using fewer materials makes the unit 20–30% cheaper than four-shelf alternatives while maintaining the core functionality of two-sided access.

Optimal Areas of Use

Boutiques and Small Stores

Compact dimensions are ideal for limited retail spaces where every square meter matters. Three shelves allow for an attractive display without overloading the space.

Pharmacies

Optimal height for displaying over-the-counter products with convenient access for both staff and customers in self-service areas.

Cosmetics Stores

Three levels allow products to be organized by category: facial care, body care, and hair care. Open access enhances product presentation.

Stationery Stores

Well-suited for writing instruments, paper products, and office accessories of various sizes.

Children’s Stores

Safe height and the absence of sharp edges make the shelving unit suitable for children’s retail environments.

Space Planning Features

Optimal Product Placement

• Bottom shelf: heavy or bulky items, everyday products

• Middle shelf: main assortment at eye level

• Top shelf: lightweight items, seasonal or promotional products

Visual Appeal

Three shelves create balanced proportions without visually overloading the space, which is especially important in smaller premises.

Work Ergonomics

Fewer shelves simplify product replenishment and inventory checks, reducing staff time spent servicing each shelving unit.

Modifications and Accessories

Special Shelves

• Shelves with side guards for small items

• Perforated shelves for ventilation

• Glass shelves for premium products

• Angled shelves for improved presentation

Safety Systems

• Product retainers to prevent items from falling

• Rounded corners and protective caps

• Anti-slip shelf coatings

Information Elements

• Various types of price tag holders

• Advertising frames on upright ends

• Navigation and signage panels

Assembly and Operation

Quick Assembly

1. Install vertical uprights

2. Mount shelves at the desired height

3. Check stability and level

Total assembly time: 15–20 minutes.

Height Adjustment

Shelf height can be adjusted without fully disassembling the unit—simply lift one side of the shelf and reposition it in the desired perforation.

Maintenance and Care

• Weekly cleaning with a damp cloth

• Monthly inspection of fasteners

• Tightening of bolts if necessary

• Service life: 12–15 years with proper use

Color Options

Standard Colors

• Matte white – universal for any interior

• Metallic gray – modern high-tech style

• Matte black – elegant solution for premium stores

Custom Colors

Available in any RAL color to perfectly match brand identity or interior design.

Economic Performance

Cost of Ownership

• Initial cost 25–30% lower than four-shelf models

• Reduced transportation costs due to compactness

• Faster return on investment thanks to an optimal price-to-function ratio

Space Efficiency

Despite having fewer shelves, proper planning allows placement of up to 80% of the products compared to a four-shelf version, at a significantly lower cost.

Profitability

An optimal solution for startups and small businesses, enabling quick store setup with minimal initial investment.

Package Contents and Delivery

Standard Package

• 2 perforated vertical uprights

• 3 adjustable shelves

• Set of fasteners

• Assembly instructions

• Warranty card

Delivery Conditions

• Packaging: compact cardboard box

• Package weight: 20–27 kg

• Package dimensions: 110 × 35 × 15 cm

• Stackable for bulk delivery

Warranty and Service

Warranty

• Structural warranty: 3 years

• Coating warranty: 2 years

• Free replacement of defective parts

• Operational consultations

Service Support

• Phone support for assembly

• Online support with video instructions

• Availability of individual spare parts

• Upgrade and modernization services

Conclusion and Recommendations

The backless shelving unit with three shelves is an optimal choice for businesses that value practicality, cost efficiency, and functionality. Its compact design combines all the benefits of two-sided access with minimal investment and ease of use.

Especially recommended for:

• New retail businesses

• Small specialized stores

• Temporary retail outlets

• Limited-space premises

• Frequently changing assortments

This shelving unit allows for quick and efficient organization of retail space, ensuring attractive product presentation with minimal equipment costs.
