Design Features

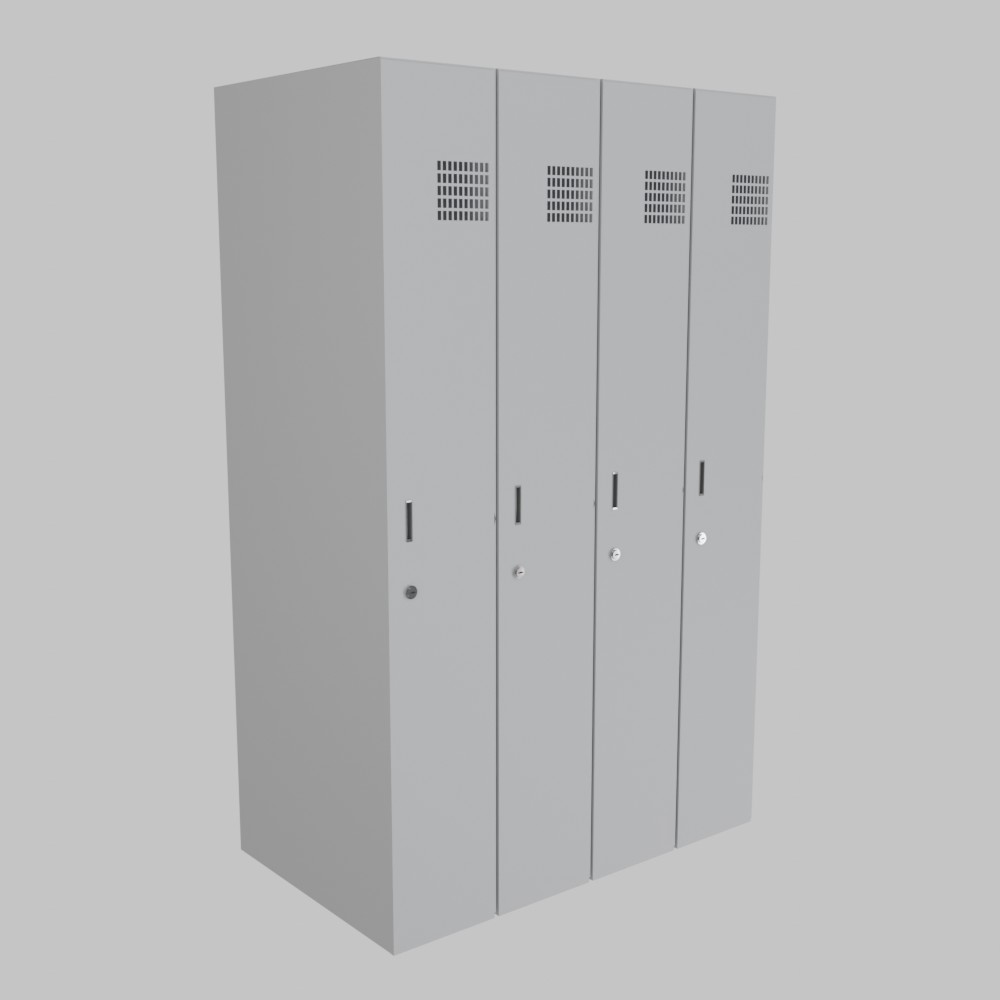

A four-section metal locker with individual compartments, each equipped with a separate door with ventilation openings. The design provides full isolation of each section for personal use.
Technical Specifications
-
Overall dimensions: 1200 mm (W) × 500 mm (D) × 1800 mm (H)
-
Number of sections: 4 individual compartments
-
Single section size: 300 mm (W) × 480 mm (D) × 1750 mm (H)
-
Metal thickness: body – 0.8 mm, doors – 0.6 mm
-
Load capacity per section: up to 40 kg
-
Locking system: cylinder lock or combination lock
Materials and Coating
-
Cold-rolled steel with phosphating
-
Powder coating, RAL 7035 (light grey)
-
Corrosion resistance: class C3 according to ISO 12944
-
Coating thickness: 60 ±10 μm
-
Impact resistance: up to 2 J
Functional Elements
-

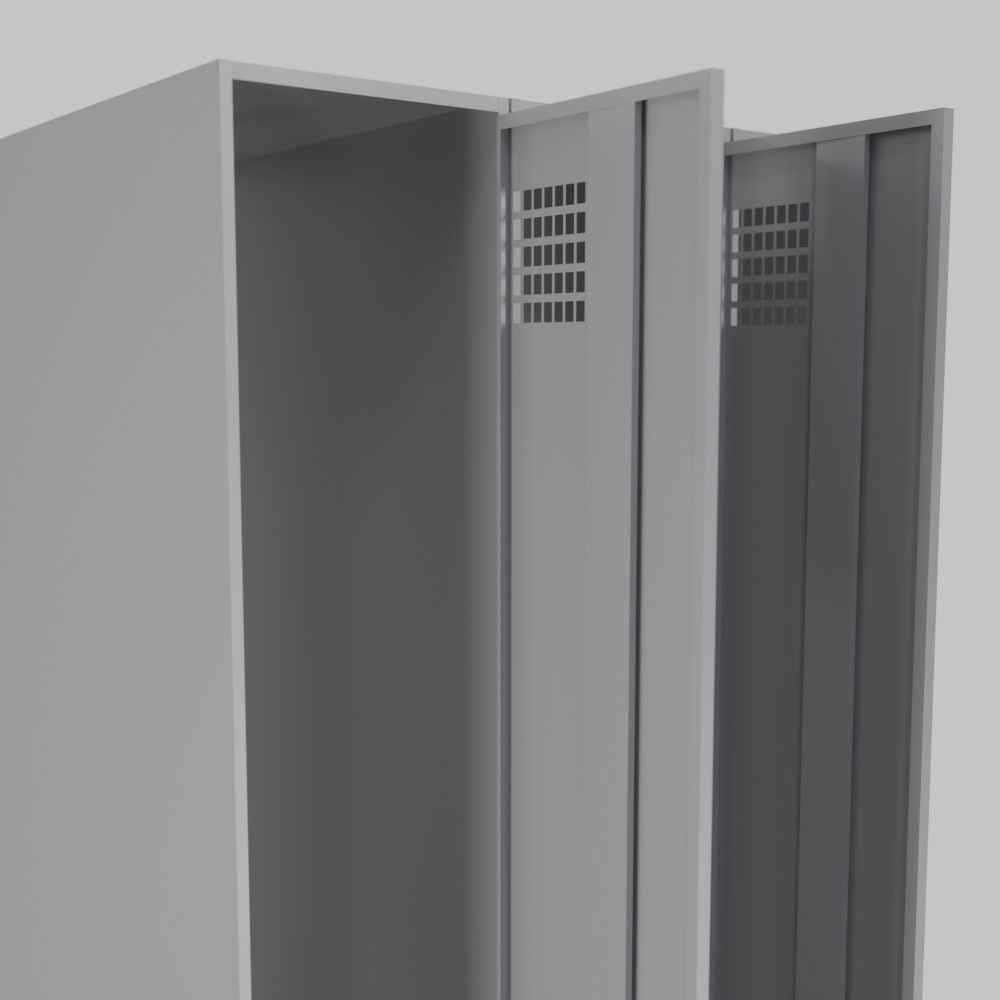

Ventilation grilles in the upper part of each door
-
Internal coat hooks (2 per section)
-
Top shelf for headwear and small items
-
Adjustable feet with a range of 10–15 mm
-
Wall-mounting holes
Areas of Application
-
Changing rooms in gyms and fitness centers
-
Industrial facilities (workwear changing areas)
-
Medical institutions (storage of uniforms and protective clothing)
-
Educational institutions (students’ personal belongings)
-
Office centers (personal storage)
-
Shopping malls (staff rooms)
Ventilation System
Perforated panels in the upper part of the doors ensure natural air circulation, preventing unpleasant odors and maintaining an optimal microclimate inside each compartment.
Locking System Options
-
Cylinder lock with two keys
-
Mechanical combination lock (4-digit)
-
Electronic lock with access cards
-
Coin-operated lock for temporary use
Optional Accessories
-
Section numbering (engraving or stickers)
-
Additional internal shelves
-
Master key system for administration
-
User instruction plate
-
Impact-resistant glass in doors for visual control
Key Advantages
-
Secure personal storage
-
High level of hygiene due to individual compartments
-
Durability and resistance to intensive use
-
Easy cleaning and disinfection
-
Space saving with high storage capacity
Assembly and Installation
The locker is supplied fully assembled or as a flat-pack kit. Assembly time is approximately 30–45 minutes. Wall or floor fixing is mandatory to ensure stability.
Room Requirements
-
Operating temperature: from –10°C to +60°C
-
Relative humidity: up to 80%
-
Floor evenness: tolerance ±3 mm per 1 m
-
Service access: minimum 600 mm in front of the locker
